    Sinotruk HOWO Tipper Dump Truck LHD/Rhd 10 Wheel 6X4 30t-40t

    Ask Lasest Price
    Brand Name : Sinotruk Howo
    Model Number : LSX
    Certification : ECE, GCC, ISO, DOT
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 unit per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Sinotruk HOWO Tipper Dump Truck LHD/Rhd 10 Wheel 6X4 30t-40t

    Sinotruk HOWO LHD/Rhd 10 Wheel 6X4 Tipper Dump Truck 30t-40t Dump Truck


    Tipper Dump Truck Of Product Description:

    Sinotruk HOWO Tipper Dump Truck LHD/Rhd 10 Wheel 6X4 30t-40t
    1. Dump truck is also called dumper truck, tipper truck, dump truck tipper, tipper etc.

    2. The dump trucks adopts is consisted of dump truck chassis, tipping box, hydraulic cylinder for dump truck. The dump truck is mainly used for transport sands, stone, gravels, etc. As a dump truck supplier, the dump truck for sale are 4x2 dump truck, 6x4 dump truck, 8x4 dump truck etc.


    Tipper Dump Truck Of Product parameters:


    Sinotruk HOWO 6x4 Dump Truck
    Chassis ModelZZ3257M327W (Left/ Right Hand Driving Type Optional)
    EngineModel: WD615.47, Euro 2, 371 HP
    6-cylinder in-line with water cooling, turbo-charging and intercooling
    Displacement: 9.726 L
    ClutchSingle-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance
    GearboxSINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO)
    Front AxlesHF9, 9000kg with drum brake system
    Rear AxlesHC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73
    SuspensionFront suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer
    Steering Systemfamous brand power steering, model ZF8118 , hydraulic steering with power assistance
    Braking SystemFront drum rear drum brake, four-circuit protection valve
    Service brake: dual circuit compressed air brake
    Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms
    Tires12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre
    Fuel Tank Volume (L)300
    Dead Weight12020/8630
    Gross Vehicle Weight (kg)25000
    Rated Loading Weight (kg)12850; 12640 optional
    Overall Dimension
    (LxWxH) (mm)
    7545x2550x3400
    Wheelbase (mm)3225+1350
    Min.Ground Clearance (mm)314
    Approach/Depart Angle(°)19/ (27/65)
    Gradeability (%)≥50
    Min. Turning Diameter (m)15
    Cargo Body Size (LxWxH) (mm)4800x2300x1200
    Cargo Body Volume (m3)13.25
    Remark (Engine Power Option)336HP; 371HP

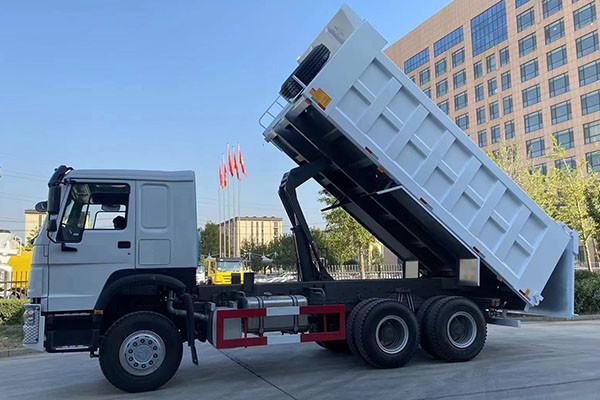

    Tipper Dump Truck Of Details:
    Sinotruk HOWO Tipper Dump Truck LHD/Rhd 10 Wheel 6X4 30t-40t
    FAQ:

    Q: Are you Dealer or Factory ?

    A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.


    Q: I want to transport the truck by container, is it ok?

    A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.


    Q: How about your product quality?

    A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.


    Q: I want to be your agent in my country, is that ok?

    A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.


    Q: How about your company's service, especially after-sale service?

    A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.


    Q: What is your payment terms?

    A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the L/C 100% at sight.


    Q: What is your lead time?

    A: Usually it is 30-50 days after deposit received.
