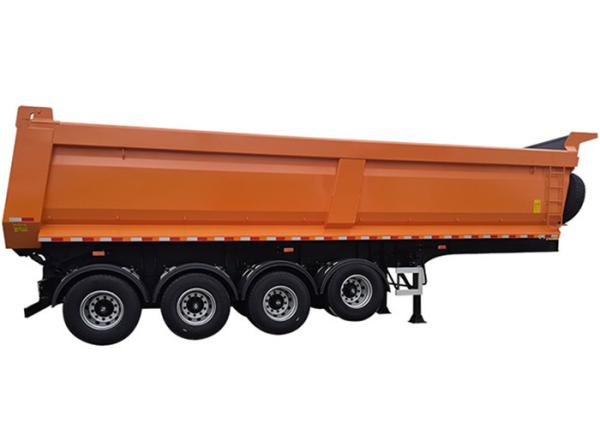

4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton

    Buy cheap 4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton from wholesalers

    Buy cheap 4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton from wholesalers
    • Buy cheap 4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton from wholesalers
    • Buy cheap 4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton from wholesalers
    • Buy cheap 4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton from wholesalers
    • Buy cheap 4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton from wholesalers

    4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton

    Ask Lasest Price
    Brand Name : Sinotruk HOWO
    Model Number : LSX
    Certification : CCC ISO DOT
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 unit per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton

    4 Axles Heavy Duty U-Shape 40-80 Ton Bulk Cargo Tipper Truck Trailer


    Tipper Truck Tralier Of Product description:


    4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton


    U-shaped dump semi trailer is used to transport of bulk cargo, coal, ore and build materials. The corner of U-shaped box doesn't exist dead ends, unloading more clean; Adopt T700 High strength plates to lower the tare weight; reduce the damage of ore head on the box; U-shaped structure of the lower center of gravity to avoid the goods spilled.We adopt world famous brand of parts, like JOST, WABCO braking valve, etc.


    Tipper Truck Tralier Of Product parameters:


    Tare Weight:About 12 Tons
    Dimension:10500*2500*3506 mm
    Loading Surface Size:8850*2300*1650 mm
    Loading Capacity:76 Tons
    Axle:4*13Ton(1840mm); FUWA Brand, Front axle lift suspension
    Rim:16 pcs (9.0*22.5)
    Tire:16 pcs (11R22.5); Chinese Brand
    Suspension:4sets of the Mechanical suspension
    Spring leaf:90mm*13mm*10pcs-8sets
    King pin:2.0 or 3.5inch Bolts type or Welding type
    Support leg:28Tons
    Main Beam:high-tensile steel Q345B, welded by automatic submerged-arc processes.Main frame is height 500mm, width:140mm; Upper Plate:16mm; Down Plate:18mm, Middle Plate: 10mm;
    Cross Beam:Q345 Channel Steel, 100mm Channel Stell.
    Cargo Box:Q345B Manganese plate, Side wall: 6mm, Bottom Plate:7mm;
    Frame :T700 high strength steel
    Oil Cylindner:Domestic Hywar Oil Cylinder
    Braking System:Double Line; T30/30 + T30 spring brake chamber(6pcs), 40L air tanks(2pcs);
    Valve:KANGJIAN valve
    Electrical System:glad-hand, 24V coupler, rear lamp, side lamp, 7-pin coil wireless, LED lights;
    rain tarpaulin:with rain tarpaulin
    Accesssories:one standard tool box and one set of spare tire carrier.
    Painting:Sand blasting before painting; One coats of primer, anti corrosion
    Two coat of finish painting; Colour painting -Optional.

    Reasons to choose us:

    1. Our transportation equipment supports customized services, customized according to your different needs is your own unique transportation equipment.

    2. The first-class brand of dump truck, the source factory wholesale price, high cost performance.

    3. After-sales service is accurate and in place, proactively and promptly deal with after-sales problems for you, and support video after-sales service, if necessary, an engineer can also be arranged for on-site service.


    Our service:

    1.We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.

    2.Our company promises to provide one-year warranty for all new equipment and free consulting service for life.

    3.After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.
    Tipper Truck Tralier Of Details:
    4 Axles Bulk Cargo Tipper Truck Trailer Heavy Duty U Shape 40 Ton

    FAQ:
    1. Are you a factory of vehicles ?
    Sure. We are a notable factory in our local city.
    2. Could you customize exactly according to my requirements?
    Yes. We have professional R&D team, we can produce the product exactly according to your requirements.
    3. What kind of payment could be acceptable ?
    Generally we accept T/T,L/C and westunion.
    4. How about the MOQ ?
    The Minimum Order Quantity will be 1 unit .
    5. How about the delivery time ?
    Generally the preparation need about 30 working days or even less. Buyers could inquiry on-line.
