CNHTC brand new and used 30-50 ton prime mover Howo 375hp 10 wheel
tractor head for sale at low price
Product introduction:
MILITARY QUALITY:SAFE & RELIABLE
* Lightweight Design
* Complete vehicle technology from European MAN platform, meeting
55 military truck standards. The vehicle pass the severe 200000km
road test include high altitude,low and high temperature torture
tests
MULTI FUNCTIONAL STEERING WHEEL
*Integral 450 four-direction adjustable steering
wheel,multi-functional combination switch.
* Environment-friendly sound-absorbing material,overall low carbon
foam floor mats, door and window dual sealing system,offering good
heat preservation,insulation and noise reduction.
SUSPENSION SYSTEM UPGRADE
* A new generation of 4-point air suspension system and lateral
shock absorber ,better NVH,the body shake resistance reaching
European standards,comfort increased by 55%.
parameter:
| Product Name | LSXDFL4251A9-T57E-965 |
| Type | 6X4 Tractor |
| Chassis Dimensions(mm) |
| Overall chassis length | 6810 |
| Cab width | 2500 |
| Cab height (unladen) | 3700 |
| Wheel base | 3200+1300 |
| Front overhang | 1500 |
| Rear overhang | 810 |
| vehicle weights(kg) |
| G.V.W | 25000 |
| Curb weight(vehicle) | 8500 |
| Frame profile Dimensions(mm) |
| Frame width (front ) | 940 |
| Frame width ( rear ) | 860 |
| Section height | 300 |
| Section width | 90 |
| Engine | Type | Cummins L375 30 |
| Emission level | Euro 2 EGR |
| Maximum power | 276 Kw at 2200 rpm |
| Maximum torque | 1480N.m at 1400 rpm |
| Number of cylinders | 6 |
| Displacement (lit) | 8.9 |
| Cylinder bore (mm) | 114 |
| Stroke (mm) | 145 |
| System | Water cooled,turbocharged ,Air cooled ,with EGR |
|
|
|
| Clutch | Type | ¢430 |
| operating system | Hydraulic control with air booster, pulling |
|
| Gear box | Type | FAST 12JS160TA |
| Number of gears | 12 forward gears& 2reverse ,synchronized |
|
| Ratios | 12.10; 9.41; 7.31; 5.71; 4.46;3.48;2.71;2.11; 1.64; 1.28; 1.00;
0.78; R1:11.56;R2:2.59 |
Maintanence:
1.Check Check the oil pan, injection pump, oil bath air filter,oil
in the power output gearbox, if the oil level rises regularly
2. Check the cooling water level in the tank, if the water is not
enough,please add the water
to the standard level. When the
temperature is below + 5oC,the engine if off work,please discharge
the water.
(when there is no antifreeze fluid)
3. Check and tighten bolts and nuts out of the engine, excluding
oil leaks,
water leaks, air leaks.
4. When working in dusty places, remove dust on the air filter.
And,replace the air
filter when necessary.
5. Clear dirt , dust and oil on the surface of engine.
6. Listening to the voice when diesel engine is running, observing
the color of exhausted air,
exclude the problem and
irregularities found.
7. Replace engine oil,clean oil pan and oil strainer,oil filter
tank, repalce the oil in the
injection pump, according detailed manual.

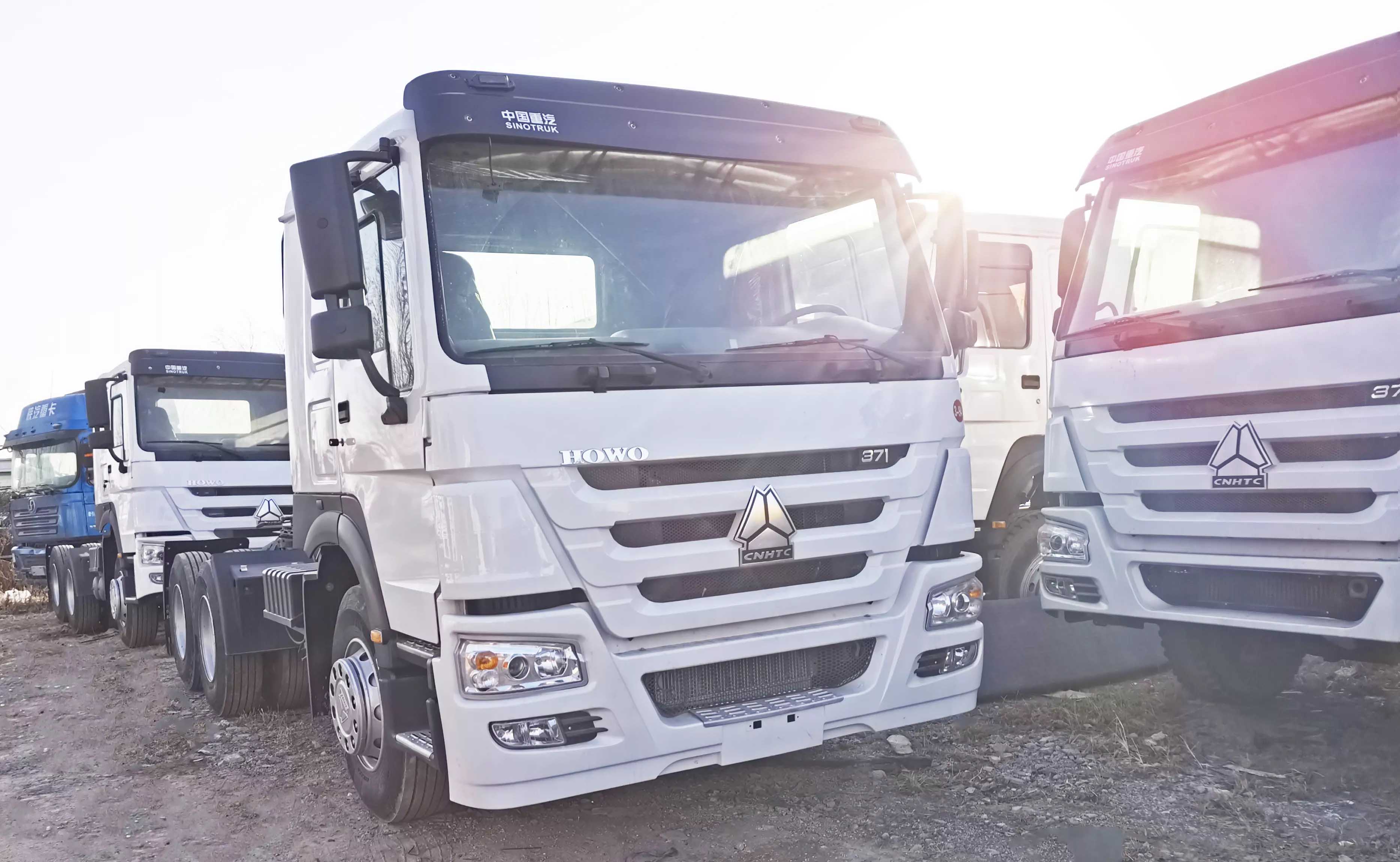

Product display:
Product details Display:
FAQ:
1. Who are we?
We are based in Henan, China. Since 2013, we have sold to Africa
(80.00%), Southeast Asia (10.00%), South America (5.00%), the
Middle East (2.00%), Oceania (2.00%), and East Asia (1.00%). There
are about 12-50 people in our office in total.
2. How do we guarantee the quality?
It is always a pre-production sample before mass production;
Always perform a final inspection before shipment;
3. What can you buy from us?
Trucks, trailers, tractor heads, truck parts, trailer parts, tanks
4. Why buy from us instead of other suppliers?
We were established in 2006 and are a leading company in the truck
and machinery business. We are the top brand of Chinese truck
export. We provide services for trucks, truck parts and machinery
all over the world.
5. What services can we provide?
Accepted delivery terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted payment currencies: U.S. dollars, euros, renminbi;
Accepted payment types: T/T, L/C, D/P D/A, MoneyGram, PayPal,
Western Union, cash;
Languages: English, French
