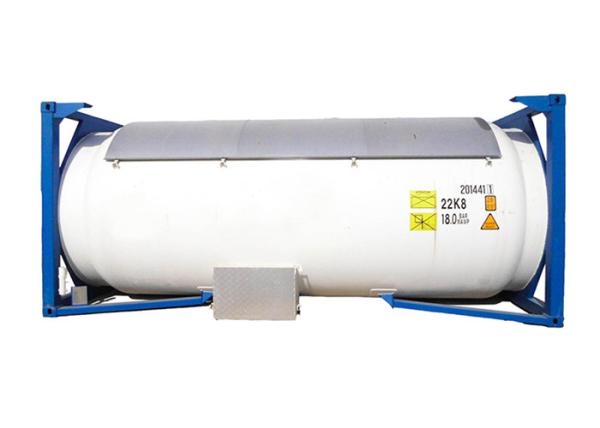

BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel

    Buy cheap BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel from wholesalers

    Buy cheap BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel from wholesalers
    • Buy cheap BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel from wholesalers
    • Buy cheap BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel from wholesalers

    BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel

    Ask Lasest Price
    Brand Name : LSXC
    Model Number : LSX
    Certification : CCS,LR,BV,ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 unit per month
    Delivery Time : 30 working days
    MOQ : 1 Unit
    • Product Details
    • Company Profile

    BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel

    Brand New ASME BPVC IMDG Portable Container 20FT Pressure Vessel T50 ISO Tank Container
    T50 ISO Tank Container Of Product description:

    Type: ASME standard T50 20-foot LPG ISO tank container


    Design temperature: -40 degrees Celsius to +55 degrees Celsius


    Certificate: csc certificate, such as BV / LR


    Logo:Customer's Logo


    Standard:ASME


    Key Selling Points:Long Service Life


    After Warranty Service:Video technical support, Online support


    Applicable Industries:Food Shop, Energy & Mining, liquid storage tank


    Marketing Type:New Product


    Keywords:Liquid Cylinders
    Shape:Cylinder
    Dimension(L*W*H):customized
    T50 ISO Tank Container Of Product parameters:
    ItemsParameter
    UN tank instructionT50
    Design pressure(MPa)2.2
    working Pressure (MPa)2.2
    Design external P (MPa)-0.1
    Leak test pressure (MPa)2.2
    Hydrostatic test pressure (MPa)2.93
    Vessel size(O.D.XL)(mm)2425×5913
    Overall size (L× w× H)(mm)6058×2438×2591
    Max gross(kg)34000
    M.P.L.M of R2225235
    use enviorment temperature(℃)-40/55
    Design temperature(℃)-40/55
    Joint efficiency1
    Tank MaterialsQ345R-GB/T713-2014
    Volume(m³)24.5
    Stacking mass(kg)192000
    Executive standard of extemal sizesGB/T 1413-2008
    Executive standard of comer fittingsGB/T 1835-2006
    Executive standard of markingGB/T 1836-1997
    Pressure gaugeDial Diameter (mm)≥100
    Accuracy grade1.6
    Range instruction (MPa)0~4.0


    T50 ISO Tank Container Of Product details:

    BPVC 20 Ft ISO Tank Container IMDG Cryogenic ISO Pressure Vessel


    T50 ISO Tank Container Of Our Services:

    1. Reply your inquiry in 12 working hours;


    2. Experienced staffs answer all your questions;


    3. Customer’s design is available for certain products( OEM);


    4. Spare parts for all types of engine machinery with reasonable price;


    5. Different kinds of semi trailer can be provided with competitive price.


    FAQ:

    Q: What kind of Payment can you accept?
    A: T / T and L/C is all right to us.


    Q: Does your iso tank container meet with international requirement?
    A: All of our tank container will be approval by BV or LR or CCS and meet with International Standard.


    Q: How long will it takes to ship?
    A: Around 15-25 working days.


    Q: How about the Color , Specific configuration things?
    A: It's up to you , most of them are optional and can be changed by your needs.


    Q: Are the LPG tank containers you sell brand new?
    A: Yes, all the containers we provide are brand new. In fact, we will produce new containers after the order is confirmed.


    Q: Can you provide drawings for confirmation?
    A: Yes, we will provide drawings after confirming the order before production


    Q: Do you have a small-capacity or a large-capacity tank container?
    A: Of course, we can make Tank Containers from 1000L to 60000L.


    Q: Do you provide OEM service?
    A: Yes, we have a first-class team that can design according to your requirements.
