    ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers

    Ask Lasest Price
    Brand Name : LISHIIXN
    Model Number : LSXC20220401
    Certification : BV/SCS/LR
    Price : 14300USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 unit
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

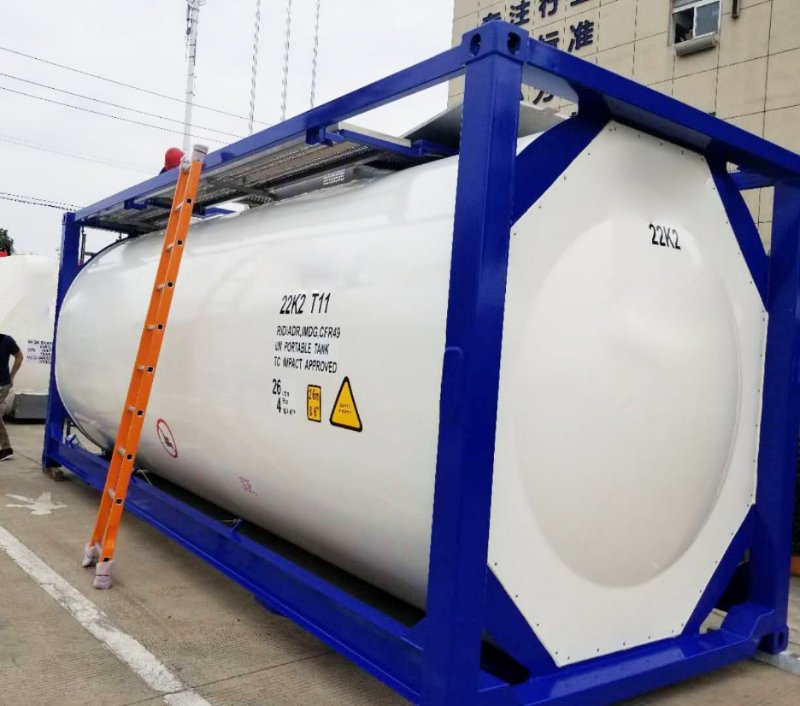

    ASME Liquid Transport Containers 25000 Liter Bulk Iso Tank Containers

    ASME Standard 25000 liter food grade liquid iso tank container for sale

    Advantage of Tank Container:

    Low Cost

    Saving land and sea freight, lower cost when long-term use

    Convenient and fast

    Fast and Convenient for Loading and unloading, washing. Door to door by land transportation, railway,
    sea transportation.

    Safety and Eco-Friendly

    No leak or pollute the environment, and No pollute the goods themselves. The safest way to transport
    chemicals and food internationally recognized.



    ISO Tank container is a kind of steel pressure vessel installed in the fastening external frame. Most
    of the tanks are made of 316 stainless steel and equipped with steam or electric heating device,
    inert gas protection device, pressure relief device and other optional equipment for fluid
    transportation and handling.
    European, American and Japanese laws stipulate that some goods must be transported in
    tank containers. As a means of Safety transportation, Tank Container has natural advantages
    and become more and more popular in the world.

    parameter:

    Specifications - T3-T14 iso tank container
    Frame Dimensions (L x W x H)
    6058,12192 x 2438 x 2591 mm
    Nominal Capacity
    25000,47000 litre (±0.75%)
    Maximum Gross Mass
    36000,75000 kgs
    Tare Mass
    3510,6200 kg (± 3%)
    Design Temperature (Frame & Tank)
    -40 to +130 °C
    Pressure
    Working
    1.70 bar
    Test
    2.65 bar
    Material
    Tank (Shell & Ends)
    SANS 50028-7 Type 1.4402/1.4404 (C≤0.03%)
    Frame
    SPA-H or equivalent
    Insulation
    Shell
    Rockwool (50kg/m3) 50mm thick on aluminium foil.
    Ends
    Glasswool (16kg/m3) thickness to suit on aluminium foil.
    Steam Heating
    6 runs.
    110mm width stainless steel 304.
    1" BSP inlet, 1" BSP outlet both with captive caps and cable.
    4 bar working pressure, 6 bar test with warning decals and markings.
    A condensate drain is fitted.
    Manhole
    500mm low profile, 8 point fixing with Super Tanktyt Lid seal.
    Safety Relief
    Assembly
    1-off.
    2½" BSP Supermaxi Highflow relive, without flameproof gauze.
    Pressure only set at +4.4 bar (63.8psi).
    The assembly is situated off centre on a tangential tank pad.
    Air Inlet
    assembly
    DN 40 ball valve terminating with 1½" BSP connection and cap.
    The assembly is situated off centre on a tangential tank pad.
    Top Discharge
    DN80 stainless steel 316 tank pad with a blind flange.
    The assembly is fitted on centre on a horizontal tank pad.
    Bottom
    Discharge
    DN80 45° Univalve Internal Footvalve part no. TBC fitted with an integrated butterfly
    valve terminating with a 3" BSP spigot with 3" BSP blind cap and chain.
    Thermometer
    A surface mounted analogue type is fitted to the rear end dished end of the tank. Dual
    scale -40°C to +160°C / -40°F to 320°F. The thermometer is fitted with a protection bar.
    Document
    holder
    A clear plastic document holder ø110mm is fitted to the rear right hand side beam.
    A drain hole is provided at the lowest point.
    Calibration
    A calibration plate marked in cm/litres is fitted on the spillbox side wall.
    No calibrated stainless steel grade dipstick and bracket fitted.
    Design Code
    ASME VIII DIV. 1
    Approval
    IMDG, US DOT CFR 49, RID/ADR, CSC, TC, TIR / Customs, UIC, ISO 1496/3


    Liquid storage tank container is widely used in industries for liquid transportation
    on the road/ rail/ ship and storage.ISO tank container:
    1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with
    ordinary 5 mm thick single-layer tank, the strength is greatly improved;
    2.Outer layer - tempered glass fiber thickness of 4.0mm or more,
    good compressive and seismic resistance. It has strong corrosion
    resistance and corrosion resistance.
    Unique technology is adopted between the inner and outer layers
    to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root.
    Leak detector 24 hours to monitor, to prevent leakage caused by security risks.

    Product advantages:
    1: We can provide different sizes of tank containers from 20 FT to 40 FT, and can accept
    customized any special tank containers.
    2. iso tank containers, acid, soda, liquefied petroleum gas and other tank containers. Various
    chemicals can be transported and stored
    3. Our iso tank containers are mainly exported to Africa, Asia and South America, such as
    Nigeria, Ghana, Kenya, Vietnam, Peru, etc. Our tank containers can also be exported all
    over the world because our standard tank containers are of international standard.

    Product pictures:

    Product details:

    Product Process

    1). cutting materials for preparing oil tanks manufacture
    2). rolling machines for circling
    3). welding and NDT(non-defection test) inspection
    4). re-circling after welding
    5). outer vessel’s abrasive blasting and anti corrosive painting for outside surface
    6). pipe connecting and assembly of inner vessel and outer vessel
    7). valves installation
    8). perlite filling
    9). vacuum-pumping
    10). final painting and ready for shipment

    Certificate


    Factory Tour:


    FAQ:
    5.1. Are your container fuel tank brand new?
    Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.
    5.2 Does your container fuel tank meet with international requirement?
    All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
    ISO 1496/3
    UN Transport of Dangerous Goods
    UIC International Rail Approval
    TIR International Transport Goods under Custom Seal
    CSC International Convention for Safe Containers
    DOT US Code Federal Regulations CFR49
    DOT UK Carriage of Dangerous Goods
    CTC Canadian Transport Commission (Rail)
    AAR American Association of Railroads
    FRA Federal Rail Association USA
    BAM G.D.R Domestic Approval
    ISO/TC11
    5.3 Can you provide Drawings for confirmation?
    Yes, we will provide drawing after order confirmed before production
    5.4 Do you have Small or Large Volume Tank Container?
    Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.
    5.5 Do you provide OEM Service?
    Yes, we have a first-class team and could design as per your requirement.
