USED TRUCK 6x4 371hp HOWO Used Truck 2017 Cheap Used Dump Sinotruck
for Sale
Product introduction:
HOWO dump truck refers to a vehicle that unloads goods by hydraulic
or mechanical lifting. It is composed of automobile chassis,
hydraulic lifting mechanism, cargo compartment and power take-off
device. Since the loading carriage can automatically tip over to a
certain angle for unloading, it greatly saves unloading time and
labor,shortens the transportation cycle, improves production
efficiency, and reduces transportation costs. It is a commonly used
special transportation vehicle.Dump Truck Howo Used Tipper For 6*4
371hp 375hp 10 Wheels Red White SINOTRUK
Sand Stone Tipping Truck:
Headlight structure
Crystal lamp shell & Strong brightness & Strong penetration & High
life
Full control of the driving environment
Rearview mirror +Road mirror + Down view mirror
The Widest large curved windshield in China
Wide view ,no blind spots, more secure
Product parameters:
| Specification |
| Vehicle series | HOWO-7 6x4 Tipper |
| Cab | HW76 |
| Engine | Model | Euro 3:WD615.95C/WD615.96C |
| Power(Ps/rpm) | 249/1900;279/2000 |
| Maximum torque(Nm/rpm) | 1490/1200-1500;1590/1200-1500 |
| Displacement(L) | 9.726 |
| Comprehensive fuel consumption | 23.7 |
| L/ 100km |
| 50km / h no load constant speed fuel consumption | 17.2 |
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and
auxiliary transmission structure, , main transmission with double
counter shaft ,auxiliary transmission with planetary reduction.
with PTOWD615.95C,WD615.96C standard HW19710 |
| Clutch | Φ430 diaphragm spring Clutch,Hydraulic control air assisted.
WD615.95Cstandard430B ,WD615.96Cstandard430A |
| Front axle | HF9 drum-type, rated load of 9t |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed
ratio:5.73, 4.8 |
| Steering system | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock
absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is
disconnected type with transverse stabilizer. |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air |
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto
clearance adjusting arm. |
| Electric system | Voltage | 24V |
| Generator | 2240W |
| Batteries | 12V/165Ah,2 pieces |
| Starter Power | 24V,7.5kW |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 12170/8630;12290/8660;12450/8690;12270/8710 |
| Gross Vehicle Weight | 25000 |
| Rated load | 12420~12700 |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (7545~8545)×2496×3170/3450 |
| Wheelbase | (3225~3825)+1350 |
| Front/rear overhang(vehicle/chassis) | 1500/(1470/715);1500/(1670/740);1500/(1870/900) |
| Wheel track of front axle | 2041 |
| Wheel track of rear axle | 1830/1850 |
| Dump box Dimensions | 5600×2500×1500mm() |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 |
| Minimum turning diameter(m) | 15/16/17 |
What is the details of our dump truck?
-Truck body:from 15cbm~20cbm, sand and gravels transportation
normal type dump body, big stones and rocks transportation with
rock type dump body.
--Options for tires:12.00-20 bias tire, 12.00R20 radial tire,
12R22.5 and 315/80R22.5 tubeless tire.
--Standard color: White, Red, Yellow (Other color is optional)
--Dump body:5400x2300x1500mm, Steel thickness (mm) :Bottom 8 ,
front6mm,side 6
--Hydraulic lifting system:Middle lifting ( front lifting is
optional) We all used original engine,new cabin interior, new seat,new
dashboard,air
conditioner is also very good condition.
Before delivery to our customers, every used trucks will be checked
strictlly,
the beginning " used trucks optimum selection, key components
detection
and replacement ", the final " all-round debugging and
comprehensive
inspection "to ensure before delivery to customer, every used
trucks is
up to high quality and good performance.
Product pictures:
Our advantage:
1. Get the new products, and meet your processing requirements.
2. Our quality products help you to win money and earn much time.
3. We always do our best to save cost for you and ensure the
quality goods.
4. Our rich-experience technical teams are standing by all the
time.
5. You can know the advance overseas technology from our products.
Which bring you more
competitive advantages.

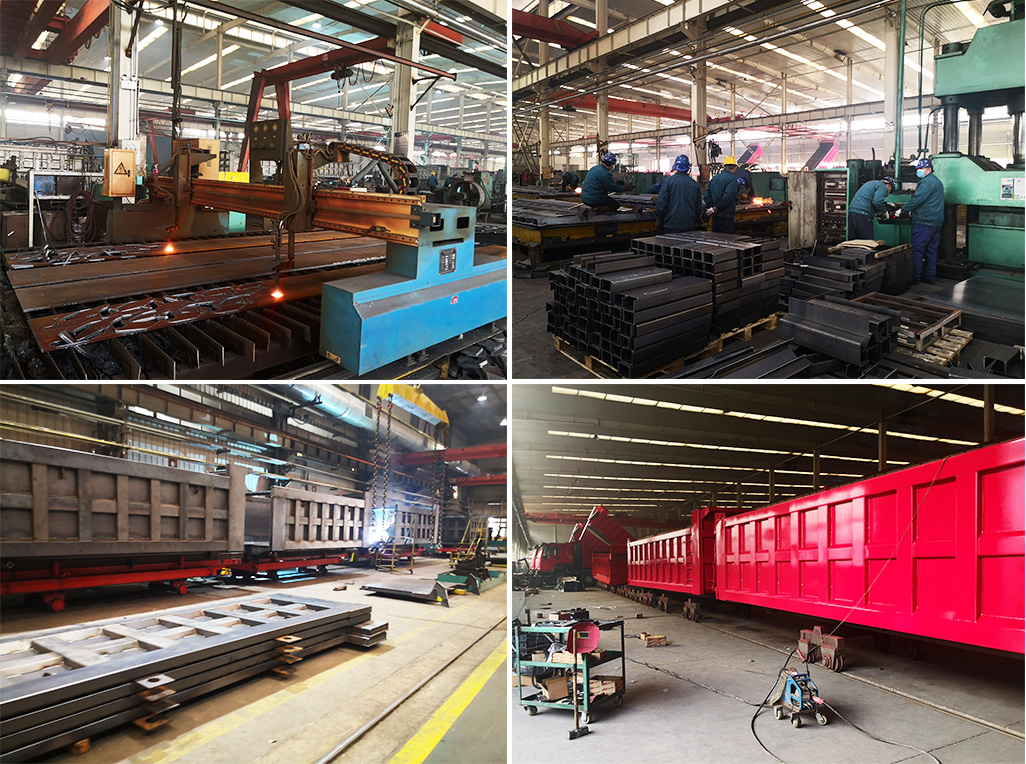

Factory Tour:
FAQ:
1. What are our strengths.
a. Near China National Heavy Duty Truck Group;
b. 16 years of production and trade experience;
c. Good quality and good after-sales service;
d. All kinds of trucks and trailers give customers the best advice
and cost performance
b. Always conduct final inspection before shipment;
c. Each process is strictly inspected.
2. What can you buy from us?
Sinotruk howo howoA7 locomotive, heavy-duty gravel/mining/mud dump
truck, custom low-bed semi-trailer, oil tanker for bulk cement
semi-trailer, milk truck
3. Why should you buy from us instead of other suppliers?
Our company has advanced production and processing equipment to
ensure product quality! We transport trailers by container, pallet, bulk or ro-ro.
Our factory has long-term cooperation with shipping agents and can provide you with the
lowest freight.
