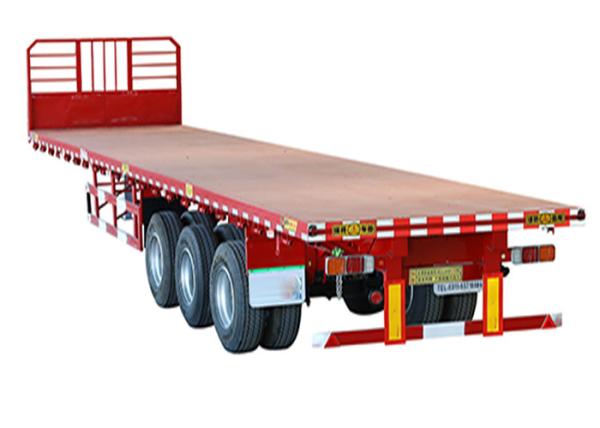

    Red Q235 Flatbed Truck Trailer 30T Triple Axle Flatbed Trailer 20ft

    30 Ton 3 Axles Flatbed Truck Trailer Transport 20Ft 40Ft container semi trailer
    Flatbed Truck Trailer Of Product Description:
    1. Flatbed Truck Trailer is a heavy-duty transport vehicle that is connected to a semi trailer by means of a tractor pin.

    2. Flatbed Truck Trailer can improve the overall economic benefits of road transport.
    3. Flatbed Semitrailer is another commonly used type of equipment in the transportation industry. It is equipped with side boards , container locks. So that , the flatbed semi trailer could do the task of containers, pipe, steel, bagged cement or breakbulk.

    Flatbed Truck Trailer Of Product Parameters:
    Tare weightAbout 6000kg
    Size12500mm×2500mm×1600mm
    Payload45T
    Main beamTop flange 14mm,width140mm;Middle Flange 8mm height 500mm;
    bottom flange16mm,width 140mm
    Side beam16# channel steel(Q235)
    Cross member10# channel steel(Q235)
    Floor3mm Flat Plate
    Axle3 axle 13T ( Original FUWA brand )
    Landing gearTwo-speed, manual operating,heavy duty landing gear 28T
    SuspensionMechanical suspension
    Leaf springLeaf spring 6sets , 10pcs,90×13 mm
    Tire12R22.5 , 12pcs
    Wheel rim9.0-22.5 , 12pcs
    Kingpin3.5” bolt-in king pin
    Twist lock8 pcs
    Braking systemWABCO RE6 relay valve ;
    T30/30 spring brake chamber;40L air tanks
    LightsLED 8 side lights and 2 rear lights 2 width lamp
    PaintingComplete chassis sand blasting to clean rust ,
    1coat of anticorrosive prime,2coats of final paint
    AccessoriesOne tool box;one spare tire carrier;one crank;
    one shaft head wrench;four side light;two rear light

    Flatbed Truck Trailer Of Design Drawing:


    Red Q235 Flatbed Truck Trailer 30T Triple Axle Flatbed Trailer 20ft



    Flatbed Truck Trailer Of Advantages:


    1. Extensive usage Fast and efficient. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.


    2. The whole vehicle adopts the advanced computer-aided design software to optimize the design,make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.


    3. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.


    4. The product quality and reliable, widely used, has become the vehicle of choice for long-distance freight vehicles. The quality of this product is reliable,extensive usage, has become the preferred models of middle&long-distance freight vehicles.



    FAQ:

    Q: I want to transport the truck by container, is it ok?

    A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.


    Q: How about your product quality?

    A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.


    Q: I want to be your agent in my country, is that ok?

    A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.


    Q: How about your company's service, especially after-sale service?

    A: we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.


    Q: What is your payment terms?

    A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.


    Q: What is your lead time?

    A: Usually it is 30-50 days after deposit received.
