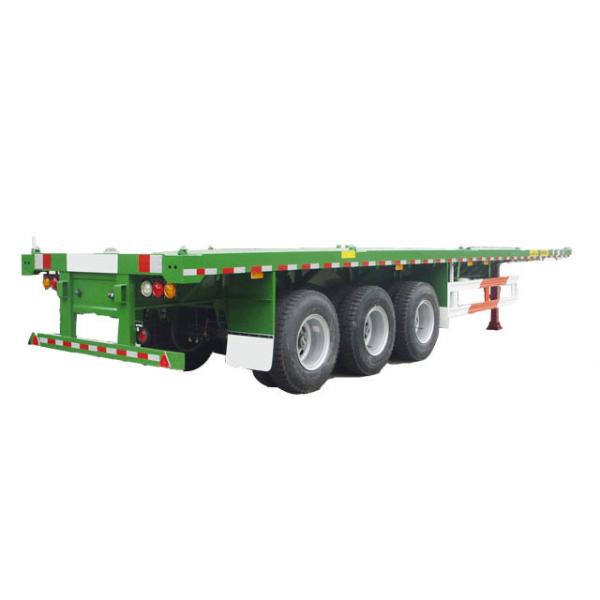

Shipping container 20ft 40ft Flatbed semi trailer 3 axle Flat Bed
Truck Trailer with container lock for sale
Our factory Established from 2009, is real factory with CCC BV ISO
WMI certificates and
experience in exporting , we can design and manufacture according
to ur requests.In order
to provide customers with the mosteconomical solution,we will
choose 2 axle or 3 axle
according to the media and loading capacity.
Factory directly sale, good quality with low price.
Product introduction
1) Reinforced main beam and side beam to ensure high loading.
2) Adopting China made best brand FUWA axle, Triangle tyres
3) 12 pcs container lock to transport 1 x40ft container or 2 x 20ft
container
parameter:
| product name | 40-foot flat container transport truck |
| Transport medium | Bulk cargo |
| Dimensions | 12500*2500*1560mm |
| Self-respect | About 7 tons |
| Warranty/Certificate | 12 months |
| Production cycle | 15 days |
| Curb quality | 67 tons |
| Load | 60 tons |
| Specification |
| Dimensions | 12500*2500*1560mm |
| Tow pin height | 1300mm |
| Wheelbase | 1310mm |
| Wheel base | 1840mm |
| Frame body configuration |
| Item | Material | Specification |
| Beam | Q345 | "The height is 500mm, the upper wing plate is 14mm, the lower wing
plate is 16mm, and the vertical plate is 8mm;
" |
| beam | Q345 channel steel | 100mm channel steel |
| Edge beam | Q345 channel steel | 160mm channel steel |
| Bottom plate | Q235 | 3mm |
| Accessories |
| Suspension | 3-axis heavy machinery suspension | Leaf spring | 6 racks-90*13*10 |
| Axle specifications/brand | 13T/Fuhua | Number of axles | 3 pieces |
| Tire specification/brand | 12R22.5 | Number of tires | 12 Article |
| Steel ring specification/brand | 9.0-22.5 | Number of steel rims | 12 |
| Outrigger specifications/brand | 28T/Yahua | Traction pin specifications | 50# or 90# interchangeable |
| Brake system |
| Brake valve brand | WABCO | Brake chamber specifications/quantity | T30/30-6 only |
| Brake system | Emergency brake system, air brake, dual air pipelines, 6 T30/30
brake air chambers, two 40L air storage tanks |
| Electrical circuit system |
| Circuit socket | 7-hole socket | Voltage | 24V |
| Lamps | LED lights | Two rear tail lights (including two steering lights, two brake
lights, two constant lights), 8 side lights, and two rear triangle
reflectors; |
| Appendix |
| 1 tool box | tool:Axle wrench, rocker |
| 1 spare tire rack | Water tank |
| Lock hands | 8 |
Features:
1. Multi functional design,ISO containers,timbers,bulk cargo,bagged
cement or grain,animals
transportation
2. Side wall removable,one driver can easily handle it
3. Main beam warranty 2 years
4. World wide semi trailer parts brand like BPW,WABCO,JOST,brand
Henan Lishixin Logistics Equipment Co., Ltd. is located in
Zhengzhou Free Trade Zone,
Henan Province, China, with a registered capital of US$3,500,000.
Luxxin specializes
in the research and development, mass production and sales of 20FT,
40FT flatbed
semi-trailers, low-bed semi-trailers, skeleton semi-trailers, and
other special logistics
and transportation equipment. Relying on the abundant
transportation advantages
and resources in Central China, Li Shixin is committed to providing
global customers
with high-quality and cost-effective transportation equipment.
Product display:
details:
factory:
certification
FAQ:
Q1. Are you a manufacturer?
Yes, we have been in special vehicle manufacturing and marketiing
for over 20 years.
Q2. What markets do your vehicle export to?
Europe, North & South America, South-East Asia,Africa, Oceanica,
Middle East countries etc.
Q3. What information should I let you know if I want to get a
quotation?
Please let us know the your purpose,road condition,cargo type,tons
of your cargo,dimensions
of trailer,quantity etc. The more info
you provide, the more accurate model and price you will get.
Q4. Is it available to print our own brand on the vehicle?
Totally acceptable as you wish.
