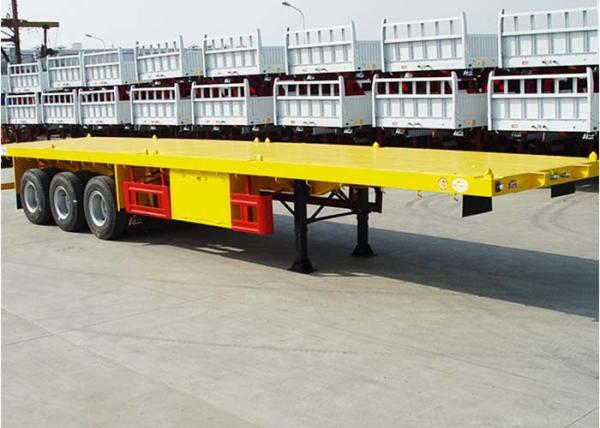

Hot Selling 2 Axis 3 Axis 4 Axis Flatbed Cargo Flat Deck Semi Truck
Trailer
Product Introduction:
The flatbed trailer truck is mainly used for transporting heavy,
over sized, wide and indelicate goods such as machinery, building
supplies or equipment. Generally speaking, flatbed trailer can
carry almost anything that can be stacked or strapped down.
They are also used to carry 20, 30, 40, 45, foot containers, thus
coming with container locks. The different containers are secured
using container locks ready for transportation. They are primarily
used for the tra
nsportation of bulk cargo. Flatbed trailer is designed for 20, 30,
40 foot containers with 2,3, or 4 axles accordingly. As always, we
are also able to design flatbed trailers to satisfy our customers
needs.
Suspension&Leaf Spring
We could provide mechanical suspension and air suspension.
According to the customer's road conditions,we could thicken the
suspension.It makes the semi trailer more durable.
Thick suspension and leaf springs can adapt to harsh road
conditions.
Tire
Tire types include wired tire,steel wire tire and vacuum tire.You
can choose different tires include triangle,Linglong,Shuangqian and
other domestic first line brands in China.
Axle
Famous brands like BPW, FUWA are available.
Chassis
In order to prevent the bottom plate from sagging, the bottom plate
will be reinforced.
Chassis adopts special chassis produced by various chassis
manufacturers, with advanced technology and reliable performance.
They are also used to carry 20, 30, 40, 45, foot containers, thus
coming with container locks. The different containers are secured
using container locks ready for transportation. They are primarily
used for the tra
nsportation of bulk cargo. ST Flatbed trailer is designed for 20,
30, 40 foot containers with 2,3, or 4 axles accordingly. As always,
we are also able to design flatbed trailers to satisfy our
customers needs.
parameter:
| Dimension (mm) | 6200 / 12480mm*2500mm*1520mm or customized size |
| Tare Weight | 6.5-7Ton |
| Payload | 40T-80T |
| Main Beam | Q 345 Carbon Steel,
Beam height 500 mm, Upper plate 14 mm, Down plate 16 mm: Middle
plate 6/8 mm |
| Platform | 3mm checkered Plate |
| Twist Locks | 4 pcs or 8 pcs or 12 pcs container lock |
| Axles | 13T16P 2/3/4 pcs, BPW or FUWA etc. |
| Leaf Spring | 90*13-10 4/6/8 sets, |
| Suspension system | Mechanical Suspension / air suspension / single point suspension
(Germany Type or America Type or Japan Type) |
| Tire | 12R22.5-18, 12 pcs |
| Landing Gear | Standard 28Ton, JOST brand or FUWA |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber;Two 40L air
tanks, ABS Optional |
| Electrical system | 1. Voltage:24V, LED lights
2. Tail lamp with turn signal, brake light & reflector, side lamp
etc.
3. Receotacle: 7 wire |
Our advantages:
Quality Assurance
Any of the products can send the inspection and regular inspection.
Price Advantage
Good quality, reasonable price,on time shipping and best service
for each customers. We Minimize all loses that may arise from the
producers. We respond to the demands and requirements of the
companies, we work with in the most effective way and as soon as
possible.
Professional Advantage
We have overseas produce and exporting business experience focus on
the trailer and truck filed,we used many years visited on many
countries.And our company has its own professional design
team,technical personnel have many years of experience.
Product display:
details:
Features:
1. Different length available.
2. Type: straight, gooseneck etc.
3. Axles can be 2,3 or 4 etc. Steering axle & hydraulic axle
available.
4. Platform extendable.
5. Twist lock available.
6. Rear dump available.
7. Columns available.
factory:
