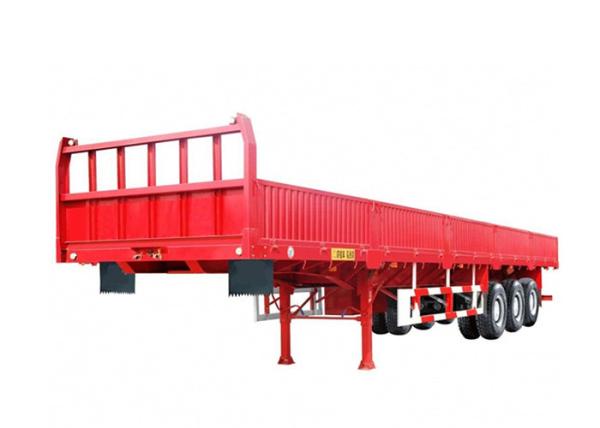

Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport

    Buy cheap Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport from wholesalers

    Buy cheap Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport from wholesalers
    • Buy cheap Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport from wholesalers
    • Buy cheap Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport from wholesalers
    • Buy cheap Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport from wholesalers
    • Buy cheap Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport from wholesalers

    Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport

    Ask Lasest Price
    Brand Name : LSXC
    Model Number : LSX
    Certification : ECE, GCC, ISO, DOT
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 unit per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    Red 3 Axle 500mm Side Wall Semi Trailer 6.5T Bulk Cargo Trailer Transport

    Side Wall Semi Trailer 3 axle 60t bulk cargo sidewall truck trailer semi trailer

    Side Wall Semi Trailer Of Product description:
    Technical advantages of railboard Semi Trailer
    1. The vehicle follows the concept of user-friendly, modular, generalized design, according to the type of transport media and tonnage, can be professionalized private customization.
    2. Products through CAE strength analysis for the overall structure optimization, frame optional with a variety of structures, weight light, high loading rate.
    3. The use of customized high-strength steel materials to ensure the quality of raw materials, the vehicle strength is higher, more stable performance.
    4. The use of automated advanced production technology and equipment, in the welding strength at the same time to improve the aesthetics of welding.
    5. The board adopts automatic welding, the weld is beautiful, does not deform, and ensures the welding strength.

    Side Wall Semi Trailer Of Product parameters:


    Specifications
    Tare Weight
    About 6.5— 7.6T
    Dimension
    8500mm-13000mm*2490mm-2500mm*2860mm-2900mm (Size can be choose freely)
    Loading Capacity (T)
    ≤ 60 T
    Axle
    13 T/16T, FUWA /BPW /Huajing Brand
    Rim
    9.00-22.5 8.5-20
    Tire
    12.00R22.5/ 315 80R22.5 11.00R20
    Suspension
    Mechanical suspension (Germany Type or America Type)
    Or Air suspension (China brand or BPW brand )
    Spring leaf
    90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
    King pin
    JOST brand 2.0 or 3.5inch bolts type or Welding type
    Support leg
    JOST brand D200T or China brand 28Tons (Double speed)
    Main beam
    Height: 500mm, upper plate is 14mm, middle plate is 8mm,
    down plate is 16mm ; Material is Q345B Steel .
    Side beam
    16mm or 18mm channel steel ( Material is Q235steel ).
    Side Wall
    600mm-1500mm ,or can be do box type ,for choose
    Brake chamber
    WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
    ABS
    Optional
    Twist Locks
    Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) ,optional
    Valve
    WABCO valve (especial for exporting market)
    Light
    LED light (especial for exporting market)
    Voltage
    24V
    Receptacle
    7 ways (7 wire harness)
    Tool box
    One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
    bar)
    Painting
    Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping Terms:
    By bulk cargo carrier, RORO or 40HQ container.

    Side Wall Semi Trailer Of Our advantage:


    Our factory with more than 20 years experience. Being famous in domestic and foreign countries, we concentrate on tank container and trailer's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time


    1. Our transportation equipment supports customized services, customized according to your different needs is your own unique transportation equipment.

    2. The first-class brand of product, the source factory wholesale price, high cost performance.

    3. After-sales service is accurate and in place, proactively and promptly deal with after-sales problems for you, and support video after-sales service, if necessary, an engineer can also be arranged for on-site service.

    4. We will provide you one-to-one service throughout the entire process, answering questions about products before sales and checking and debugging equipment after sales, and assisting in equipment maintenance and testing.

    5. Our company promises to provide one-year warranty for all new equipment and free consulting service for life.

    6. After the equipment fails, we will reply to you within 24 hours and give you a solution within 48 hours.


    FAQ:


    1. What is your MOQ?
    A: One unit.

    2. Can you meet my special requirements?
    A: Sure! We are a direct manufacturer, we have strong production capacity and research and development capabilities!

    3. How is the quality of your products?
    A: High quality has always been our advantage. We all use high-quality branded materials with 100% quality assurance. A procedure is established to inspect products, raw materials, process materials, finished materials that have been verified or tested, etc.at all stages of the manufacturing process.

    4. How can I get the price of your vehicle?
    A: You can contact us through any of the following contact methods. Our personalized service staff will reply you within 24 hours.

    5. Is it possible to print our own brand on the vehicle?
    A: It's totally acceptable.

    6: What is the delivery time?
    A: The delivery time is within 30-50 working days after receiving your prepayment.
