FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer

    Buy cheap FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer from wholesalers

    Buy cheap FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer from wholesalers
    • Buy cheap FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer from wholesalers
    • Buy cheap FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer from wholesalers
    • Buy cheap FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer from wholesalers
    • Buy cheap FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer from wholesalers

    FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer

    Ask Lasest Price
    Brand Name : LISHIIXN
    Model Number : LSXC20220401
    Certification : CCC ISO DOT
    Price : 11500USD
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    FUWA Six Axis Low Bed Semi Trailer 11.00R20 Gooseneck Tractor Trailer

    Three Line of Six Axis Lowbed Semi Trailer 40ton Low Flat Bed Semitrailer for Sale Made in China


    Low-bed semi-trailer


    A lowboy (low-loader in British English, low-bed in western Canada and South Africa or float in Australia and eastern Canada) is a semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels.This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers and large industrial equipment.


    Classification of low-bed semi-trailer


    Our factory has the ability to manufacture low-bed semi-trailers with different axles and size. Apart from regular low-bed semi-trailers,we also produce and trade low-bed semi-trailers with special purpose.Low-bed semi-trailer with dolly


    Product parameters:

    General
    Overall Dimension11960mm*3000mm*3300mm
    Flatbed Dimension8000mm*3000mm
    Tare Weight9630kgPay Load40ton
    King Pin Setting450mmRear Overhang1870mm
    Wheel base7650mm+1305mm+1305mmLoading Surface Height1320mm
    Track2160mm
    Running Gear
    SuspensionTri-axle 8-pcs leaf spring suspension with equalizer beam
    Tires311.00-20, 11.00R20,12.00-20,12.00R20 12units
    AxlesAQ,FUWA, BPW , 13T capacity
    BrakesDual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
    Under Frame
    Main BeamI shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
    Cross BeamMild Alloy Q235, 16# channel beam
    King PinSize: 50# (2'') or 90#(3.5''); Type: welded or assembled
    Landing GearSingle side operation or double side operation, Static capacity 30Ton
    Flatbed FloorCheckered sheet, thickness 4mm
    Rear LaddersSpring power-assisted
    Electrical & Paint
    Lights & ReflectorsRear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
    Wiring24V, 6 lines
    Air/Elec. ConnectorISO standard air connector, 24V 7 pin plug socket
    PaintSand blasting before painting, color upon request

    Product Functions:

    1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane,
    2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it according to your needs.
    3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
    4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
    5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
    6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.

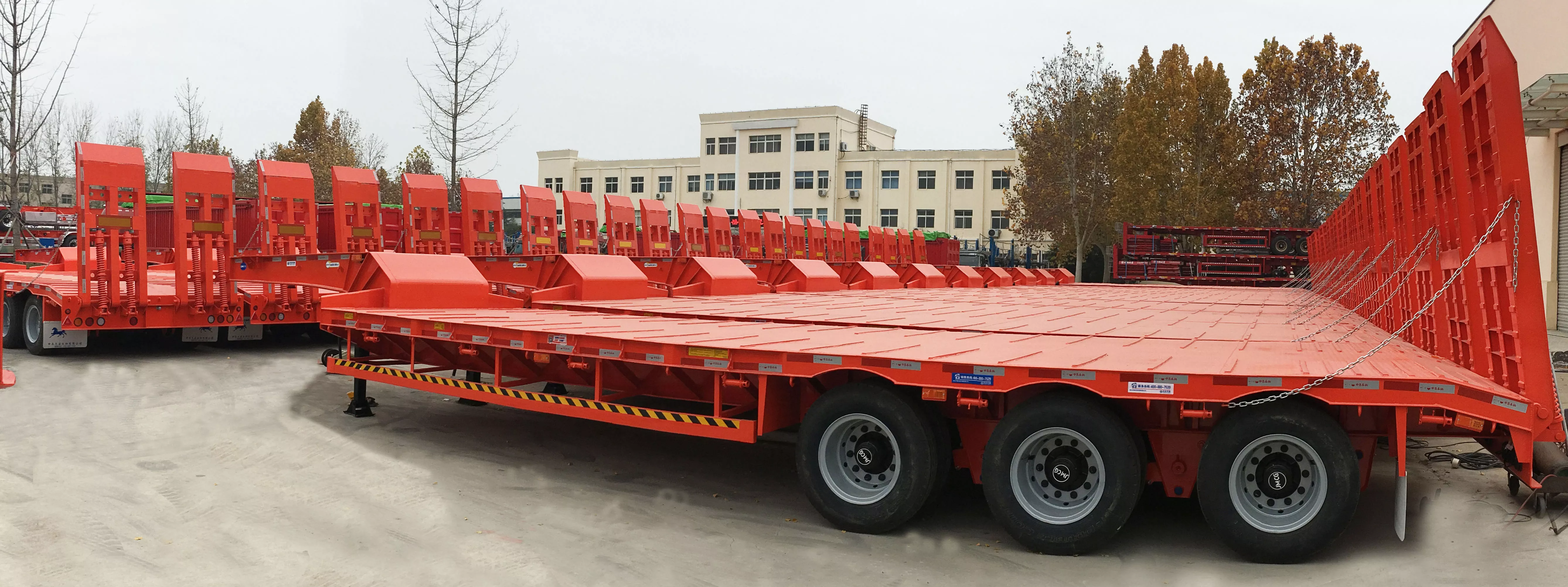

    Product pictures:



    details:



    FAQ:


    Q:How is your warranty?

    A:We prefer buyout service,but don't worry, we provide technical support and parts purchase

    channels throughout.If you need service, it’s all right, but the price may increase.

    Q:What kind of Payment can you accept?

    A:T / T and L/C is all right to us.

    Q:How long will it takes to ship?

    A:Around 15-25 working days.

    Q:What is your MOQ?

    A:1 Unit.

    Q: How about the Color , Specific configuration things?

    A:It's up to you , most of them are optional and can be changed by your needs.
