    60T BPW Low Bed Semi Trailer 3.66m Tall 16 Wheeler Low Bed

    Ask Lasest Price
    Brand Name : LISHIIXN
    Model Number : LSXC20220401
    Certification : CCC ISO DOT
    Price : 11500USD
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    60T BPW Low Bed Semi Trailer 3.66m Tall 16 Wheeler Low Bed

    China factory 3 axle 60T low bed flatbed gooseneck large machinery transport semi-trailer low bed tractor trailer


    Low-bed semi-trailer
    A lowboy (low-loader in British English, low-bed in western Canada and South

    Africa or float in Australia and eastern Canada) is a semi-trailer with two drops

    in deck height: one right after the gooseneck and one right before the wheels.

    This allows the deck to be extremely low compared with other trailers. It offers

    the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers

    cannot. Lowboys are used to haul heavy equipment such as bulldozers

    and large industrial equipment.


    Classification of low-bed semi-trailer


    Our factory has the ability to manufacture low-bed semi-trailers with

    different axles and size. Apart from regular low-bed semi-trailers,

    we also produce and trade low-bed semi-trailers with special purpose.
    Low-bed semi-trailer with dolly


    Product parameters:

    Weight
    7000KGS
    Payload
    60000KGS
    Overall Length
    13000mm
    Overall Width
    2480mm
    Chassis
    Heavy duty and extra durability designed I beam;
    Opting for high tensile steel Q345;
    welded by automatic Submerged-Arc processes;
    Top Flange 14mm, width 140mm;
    Middle Flange 6mm, height 500mm;
    Bottom Flange 16mm,width 140mm
    Axle
    2/3 /4 axles
    Brand name: BPW, L1 or FUWA
    Suspension
    Mechanical suspension or air suspension
    Spring
    Leaf spring or air bag
    King Pin
    JOST brand 2” Bolt-in King Pin
    Landing Gear
    JOST brand Two-speed, manual operating, heavy duty landing gear
    Wheel Rim
    8.5-20 ,9.0-20, 8.25-22.5, 9.0-22.5 steel wheel rim
    Twist Lock
    12 no. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container
    Tyre
    11.00R20 , 12.00R20, 11R22.5,12R22.5,315/80R22.5
    Spare Tyre
    One set of spare tire including a carrier
    Braking System
    WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks
    Painting
    Complete Chassis sand blasting to clean rust;
    1 coat of anticorrosive prime, 2 coats of final paint
    Accessories
    One standard tool box

    Product Functions:

    1. This series lowbed semi trailers are mainly used in heavy duty transportation for construction

    or logistic companies, such as excavator, digger, mover, crane,
    2. The volume varies widely from 10 cube meters to 60 cube meters, we can manufacture it

    according to your needs.
    3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
    4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie

    suspension, etc
    5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable
    6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic

    spring ladders and hydraulic loading ramps by different needs.

    Product pictures:

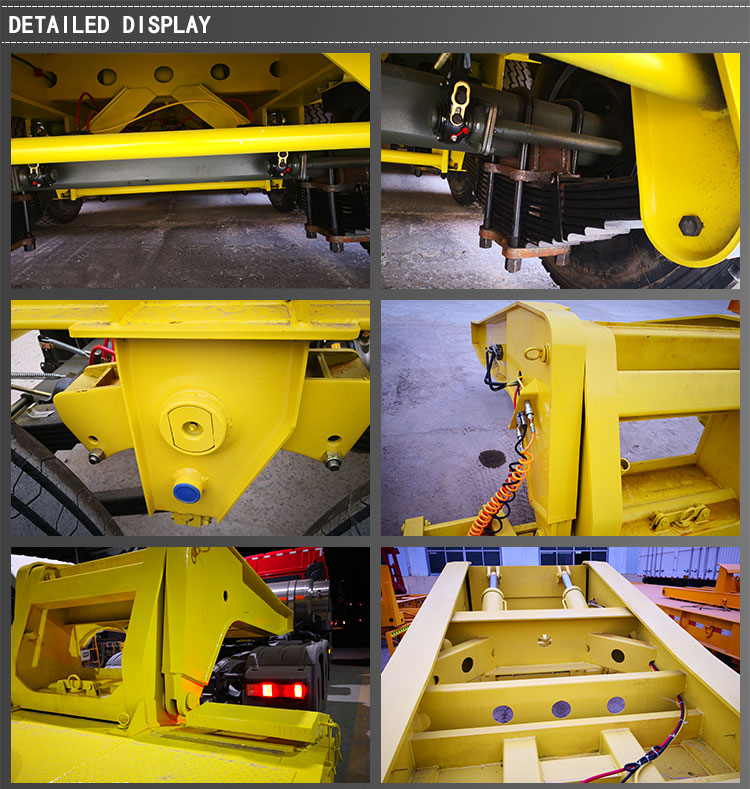

    details:

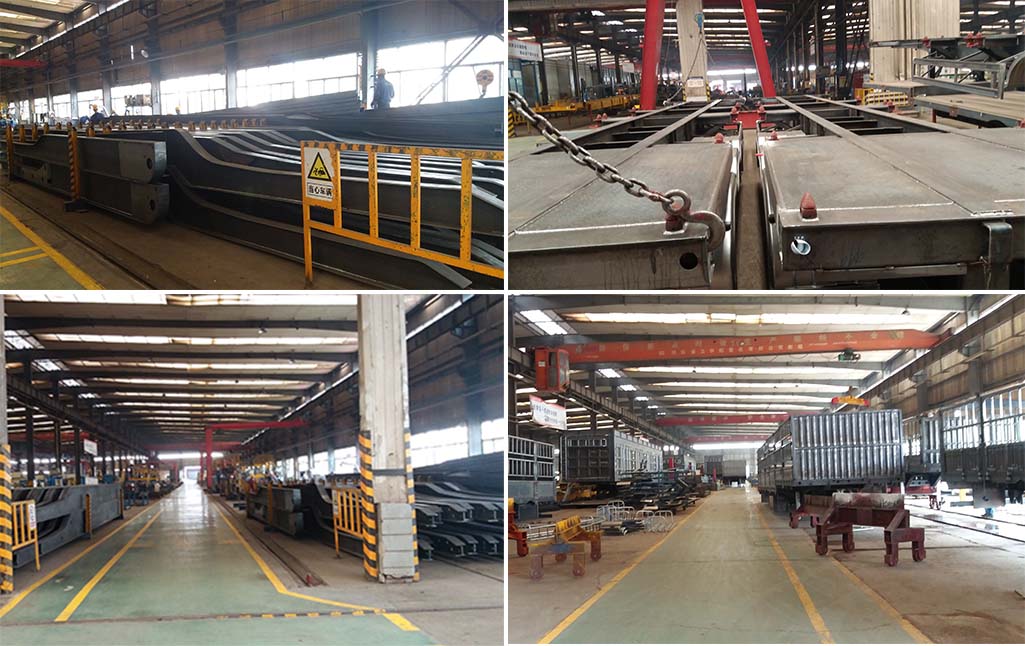

    factory:

    certification

    FAQ:

    Q:How is your warranty?

    A:We prefer buyout service,but don't worry, we provide technical support and parts purchase

    channels throughout.If you need service, it’s all right, but the price may increase.

    Q:What kind of Payment can you accept?

    A:T / T and L/C is all right to us.

    Q:How long will it takes to ship?

    A:Around 15-25 working days.

    Q:What is your MOQ?

    A:1 Unit.

    Q: How about the Color , Specific configuration things?

    A:It's up to you , most of them are optional and can be changed by your needs.
