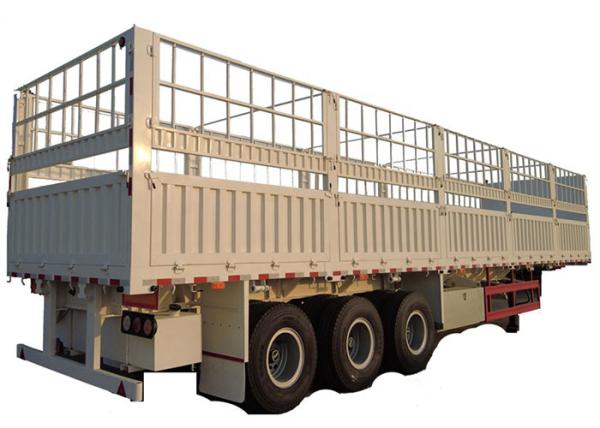

    30-80T Cow Transport Trailer 2500mm Semi Container Fence

    Ask Lasest Price
    Brand Name : LSXC
    Model Number : LSX
    Certification : CCC ISO DOT
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 unit per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    30-80T Cow Transport Trailer 2500mm Semi Container Fence

    China Factory 30-80 Tons Stake Semi Trailer Fence Semi Trailer Container Twist Lock
    Stake Semi Trailer Of Product Description:

    1. Mainly used for the middle&long-distance transport of the medium&heavy-duty and bulk goods, widely used for variety of the cargoes.


    2. Extensive usage Fast and efficient.


    3. The quality of this product is reliable, extensive usage, has become the preferred models of middle&long-distance freight vehicles.


    4. The whole vehicle adopts the advanced computer-aided design software to optimize the design, make the Frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.


    5. Axles, tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.


    Stake Semi Trailer Of Product Parameters:
    Item
    Details
    Size
    12400mm length*2500mm width, details are according to the drawing.
    Axle
    13T axle, braking pad width 220mm, without ABS.
    Tire
    12R22.5
    Leaf spring
    10 pieces, 13mm thickness, 90mm width.
    Twist lock
    12 set; can load 1*40', 2* 20' or 1*20' containers.
    Braking system
    2 lines air braking system with air tank, emergency relay valve, braking chambers and mechanical slack adjusters.
    Electrical system
    24 volt electrical system. 7 pin electrical connector. parking, stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear, front and side reflectors.
    Relay valve
    WABCO brand, customers can also choose domestic brand.
    Landing gear
    One side operation 28T
    Kingpin 3.5''
    90# JOST bolted type
    Chamber
    T30/30 on front and middle two axles, T30 on rear axle.
    Side beam
    16# channel steel
    Floor
    3mm checkered plate
    Cross beam
    80*40 square tube
    Shot blasting and paint
    Chassis is completely shot blasting to SA 2.5 grade, and painted with final layer of international Zinc Epoxy primer (30 Microns DEF), second layer of international high built polyurethane under coat (40 micros DFT). Third and forth layers international alkyd finish top coat. total 80-100 microns.
    Spare tire carrier
    Factory standard


    Stake Semi Trailer Of Production Processes:

    30-80T Cow Transport Trailer 2500mm Semi Container Fence


    Stake Semi Trailer Of Shipping

    Waxed Packing by RO-RO or Vessel:


    1. One unit was shipped separately;


    2. Two or units were packed as one set;


    Shipping by Containers:


    1. One or two units were packed in a container;


    2. Shipping by containers via CKD or SKD;


    FAQ:

    Q: Are you a manufacturer?
    A: Yes, we are a manufacturer. We have passed ISO and CE certificate and our products have been exported to over 20 countries.

    Q: Can you produce customizable machines?

    A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply
    higher configuration.


    Q: how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;


    Q: what can you buy from us?
    Sinotruk howo truck head,Heavy duty sand/stone/mine/mud dump truck,Customized low bedsemi trailer,Oil tanker bulk cement semi trailer,Water milk truck.
